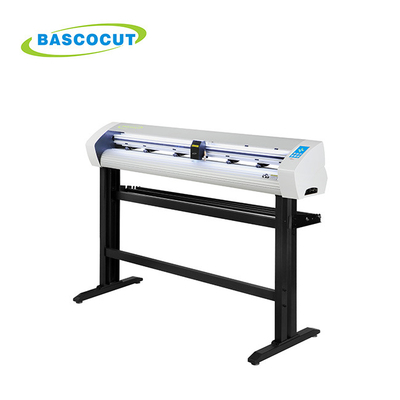

Newest Vinyl Sticker Bascocut Cutter Plotter 1410mm Step Motor Vinyl Cutter Plotter Cut Machine

1 set
MOQ
Newest Vinyl Sticker Bascocut Cutter Plotter 1410mm Step Motor Vinyl Cutter Plotter Cut Machine
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Model Number: CN-48CCD
Voltage: 110-220V
Cache Capacity: 128Mb
Paper Feed Width: 1410mm
Cutter Pressure: 500g
Cutting Width: 1300mm
Cutting Speed: 600mm/s
Driver: step motor, step motor
Cutting Length: unlimited
Repeat Cutting: 1-500 Times
Size: 1678*324*380
Product name: Vinyl Cutting Plotter
Usage: Cut Vinyl Sticker
Key words: Vinyl Cutter Machine
Cutting precision: 1mm Characters Cutting
Offline work: Disk Offline Work
Interface: USB+U Disk+Serial Port
Software: Artcut/Flexi10.5/signmaster/CORELDRAW/Adobe Illustrator
Blade: TENETH Imported Blade
Main board: 32-bit ARM7 CPU
Βασικές πληροφορίες
Model Number: CN-48CCD
Πληρωμής & Αποστολής Όροι
Packaging Details: Standard exporting package, inside is double layer carton package, outside is thick plastic package to keep dry and clean
Περιγραφή προϊόντων
Product Description

Bascocut newest Cutter Plotter 1410mm step motor Vinyl Cutting Plotter Machine

Model
CN-48CCD
Media way
Floor Stand
Main board
32-bit ARM7 CPU 168MHz,128Mb High-speed CACHE memory
Control panel
4.3 inch full touch screen
Driver
High speed,big power step motor
Max paper feeding width
1410mm
Max cutting width
1300mm
Maximum cutting speed
600mm/s
Cutting force
10-500g(digital adjustment)
Mechanical precision
0.025mm
Repeatable precision
<±0.025mm
Type of plotter pen
All types diameter 11.4mm plotter pen
Plotter instruction
Compatible DM/PL,HP/GL
Interface
USB/U disk/Serial Port WiFi(Optional)
Power supply
AC220V/110V,50Hz
Power consumption
<80W
Knife (Blade)
Imported hardness alloy steelblade
Operating environment
Temperature:5-35℃,Relative Humidity:30%-70%
Package size
1678*324*380mm
Gross weight
40kg

Main Features

* Built-in CCD camera
Compared standard sensor and optical eye,CCD can highly detect and finish scanning the registration marks with high precision.
CCD can highly improve the working precision in long cutting job.

* 4.3 inch Full touch screen
Full touch screen will bring the technology era for the machine.It offers much convenience for the operation.

* High cutting precision
Machine mechanical precision:0.025mm
No matter the fonts cutting or the contour cutting for printed material.

Detailed Images

The new technology

Company Profile

Exhibitions

Related Products
Certifications
FAQ

1.What's your delivery time?
Our delivery lead time is within 10 working days after receive full payment.

2.What are your payment methods?
We support T/T,Western union,Paypal,ABC bank etc.

3.How about Warranty?
12 months warranty for our machines.

4.How to order a machine from you?
After you confirm the order details, we will send you Proforma Invoice, including our bank account. We will prepare your order after receive your payment.

5:What can you do with our cutting plotter machine?
Supply and manufacture all kinds of CNC cutting system,cutting products and solutions to fit for different demands.Our products mainly use for Sign-making,heat transfer industry,Electronic film die-cutting,clothing drawing,Advertise sign,paper cutting and other fields.

Packing & Delivery

Package:Standard exporting package, inside is double layer carton package, outside is thick plastic package to keep dry and clean.
Delivery way: air/shipping /express.

Accessories
