Name: Vinyl Sticker Screen Easier Operation Camera Cut Servo Motor CS1500 Optional Plotter
Brand: Vinyl Sticker Screen Easier Operation Camera Cut Servo Motor CS1500 Optional Plotter
SKU: CS1500G
Price: 950.00 USD
Availability: InStock
Rating: 4.9 (176 reviews)

Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα

Χαρακτηριστικά

Προδιαγραφές

Model Number: CS1500G

Voltage: 110V/220V

Cache Capacity: 256MB

Paper Feed Width: 1600mm

Cutter Pressure: 0-500g(optional 0-1000g)

Cutting Width: 1500mm

Cutting Speed: 1000mm/s

Driver: Servo Motor

Cutting Length: Max 20000mm<=20

Repeat Cutting: Repeat Function

Size: 1900*330*395mm

Interface: USB RS232 and U-disc

Key words: Vinyl Cutter machine

large screen: easier operation

Software: flexisign,artcut, coreldraw, signmaster

Item: Automatic Contour Cutting Plotter

Usage: Cut Vinyl Sticker,heat press film

Coach: 256M

Motor: servo motor

Keywords: cutter plotter

Βασικές πληροφορίες

Model Number: CS1500G

Πληρωμής & Αποστολής Όροι

Packaging Details: Standard Strong Foam export package,carton box if needed can added wooden box to give more protection for MYCUT vinyl cutter plotter

Περιγραφή προϊόντων

Product Description

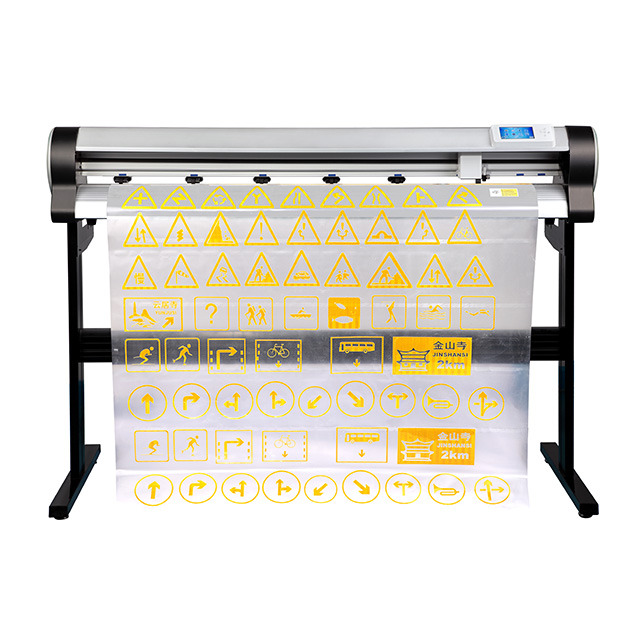

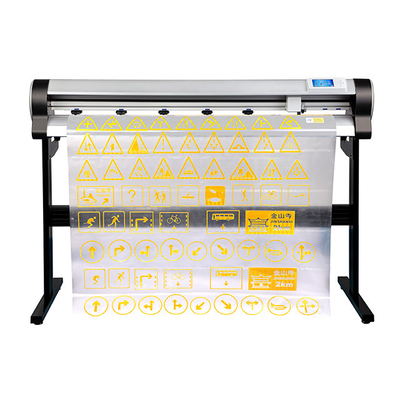

Servo motor cutter plotter CS1500G ARMS automatic contour cut cutting plotter

Support Signmaster Multi-marks segment contour cut

The CS series is our new servo motor ,high speed, supper quite without any noise vinyl cutter plotter. The CS630G With laser sensor , ARMS to automatic contour cut function. You can add optional function Multi-marks, to do segement contour cut. Now you only use one third or half price of graphtec, but buy a high quality 95% of graphtec.

We are the leading manufacturer of vinyl cutter machine in shenzhen,china.It is your best choice for advertising and heat press field

Main Features

1:Servo motor ,supper quite and fast speed vinyl cutter.

With laser sensor, automatic contour cut,ARMS

2: High force to cut 3M reflective films (choose 1000g large force)

3: Real 256MB memory

4:High precision steel roller: guarantee 5 meters without diviation of paper feeding

5: Supper quite, without any working noise.

6:High performance 32-bit processor with ARM Cortex-M3

7: Support to cut 1.5mm letters

8: Work with U disc directlly

PC requirements: Windows 10, 8, 7, Vista, XP (both 32 bit and 64 bit)

Language: Chinese/English

Software support: Coreldraw Signmaster,Flexisign.

You can output from Artcut,Coreldraw Flexisign and Signmaster directly.For all our cutter plotter, you don't need to worry software. Different countries, the software maybe different. For most popular software, mycut sticker cutter all support. This will make cutting so easy.

Model	CS630G (24'')	CS1200G(48'')	CS1500G(59'')
Media Way	Floor stand
Main Board	High-performance & intelligentARM 32 CPU; 64MB memory
Driver	servo motor
Maximum Paper Feed Width	730mm	1400mm	1600MM
Maximum Cutting Width	630mm	1270mm	1500MM
Maximum Cutting Speed	1000mm/s
Cutting Force	50-500g(digital adjustment)
Mechanical Precision	0.05mm
Repeatable Precision	< +-0.1mm
Plotter Instruction	DM-PL/HP-GLAutomatic Identification
Interfaces	USB / Serial port / U-Disc port
Power Supply	AC110V /220V±10%, 50Hz/60Hz
Laser point Positioning	Contour cutting function; Compatible with Flexi10, signmaster and Coreldraw
Noise at Work	≤25 DB
External Dimension	1045330375mm	1590330375mm	1890330375mm

Detailed Images

Design and cut from Coreldraw /Signmaster

install the coreldraw or signmaster software ,and we supply coreldraw or signmaster plug in .Easier and professional design cutting solution for you.

new cutting plotter easier and smart operation

We supply you large screen and the new models with fashion look,optional touch screen, wifi connection.New models are easier for end customers to use.

MYCUT cutting plotter cut perfect with flocking heatpress film .don't waste your material with cheap cutter any more. MYCUT vinyl cutter is your perfect partner with heat press machine!

Packing & Delivery

Standard Accessary:

1 x power cord 1 x Manual 1 x Blade holder

3 x Blades 1 x Pen holder

1 x RS232 data cable 1 x USB data cable

Our Packing&Service

1.One year free warranty, main parts are free charge when damaged during the guarantee period.
2.Free training course at our factory with professional engineers.
3.We provide the consumable parts at agent price when you need replacement
4.24 hours online service each day, free online technical support.
5.We provide door to door technical support to agents, if necessary.

Factory Info

Shenzhen Huansheng Machinery Co.,Ltd Source Manufacturer Cutting Plotter Factory

As a professional manufacture of vinyl cutter machine, Our factory comply with ISO9001: 2008 quality control as the production standards, insists to test every machine meticulously in the workshop. And our professional team offer customers with comprehensive and thoughtful service. For all our vinyl cutter,engraving machine and CNC equipment, we can guarantee zero-defect before delivery.

Our vinyl cutter have been widely used in the following areas:Advertise sign,sticker,paper cutting,traffic signs and heat transfer industries.

Welcome to visit our factory and get mor detail information,please visit www.mycutcutter.com. Or contact Shirley Wei :008618820966962 .
