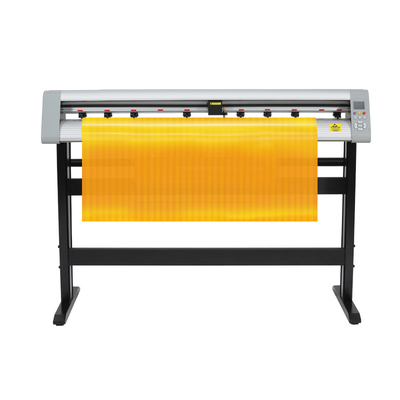

Auto Cutter Function with Reflective Cutter Plotter 1.3m Sensor Signkanon Camera Graphic Plotter Auto Film Cutting Cutting Vinyl Cutter

1.0 Sets
MOQ
Auto Cutter Function with Reflective Cutter Plotter 1.3m Sensor Signkanon Camera Graphic Plotter Auto Film Cutting Cutting Vinyl Cutter
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Model Number: XX49AX / XX59AX
Voltage: 110V- 220V
Cache Capacity: 4
Paper Feed Width: 135/166 cm width
Cutter Pressure: 10-2000g (digital adjustable)
Cutting Width: 126 / 155cm
Cutting Speed: 800mm/s
Driver: Big power step motor ,micro-step driver
Cutting Length: Length is unlimited
Repeat Cutting: 30/45/60 degree, Imported blade
Size: 1590*340*400mm/1900*340*400mm
Product name: XX49AX / XX59AX
Interface: USB/ U disk / Serial port
Mechanical precision: 0.025mm
Max cutting width: 126cm / 155cm
Feeding width: 136Ccm/166cm
Control panel: 11 silicon buttons , 2.4 inch high definition LCD screen
Main board: 32-bit ARM7 CPU,128Mb,High-speed CACHE Memory
Maximum cutting thickness: 1mm
Plotter instruction: Compatible DM/PL ,HP/GL
Function: Auto contour cutting function with sensor
Βασικές πληροφορίες
Model Number: XX49AX / XX59AX
Πληρωμής & Αποστολής Όροι
Packaging Details: 1.Double carton packing
Supply Ability: 1000 Set/Sets per Month
Περιγραφή προϊόντων
Product Description




Why choose us?
※Hardware
Technically-advanced cutter with outstanding quality and durability.
※Controller
Controller of our own with advanced algorithm, it is powerful, trustable and user friendly.
※Software
We develop software by ourselves, we supply software development kit for more possibilities.
Performance Features:
※ Easier operation
High Cutting force of cutting reflective film
※Longer service life Silicon buttons
Compatible to all files from Artcut, Signmaster, CDR, AI, CAD, Flexi etc pattern making software 2.4inch industrial LCD display screen
※Two languages selection
Chinese and English
※With contour cutting function
it can cut fonts, simple patterns and also printed material
※U disk offline working
plt format file can be copied to U disk, and work without PC connection
※Wifi optional (mobile phone control )
Model Name
XX49AX
XX59AX
Function
Manual/Auto contour cutting function with sensor
Manual/Auto contour cutting function with sensor
Driver
High speed ,big power step motor ,micro-step driver
High speed ,big power step motor ,micro-step driver
Control panel
11 silicon buttons , 2.4 inch high definition LCD screen
11 silicon buttons , 2.4 inch high definition LCD screen
Paper Feed Width:
1350mm
1660mm
Cutting Width:
1250mm
1550mm
Interfaces
USB/ U disk / Serial port
USB/ U disk / Serial port
Plotter instruction
Compatible DM/PL ,HP/GL
Compatible DM/PL ,HP/GL
Main board
32-bit ARM7 CPU，128Mb,High-speed CACHE Memory
32-bit ARM7 CPU，128Mb,High-speed CACHE Memory
Cutting force
10-2000g (digital adjustable)
10-2000g (digital adjustable)
Cutting speed
800mm/s
800mm/s
Maximum cutting thickness
1 mm
1 mm
Gross weight
38kg
45kg
Package size
1590*340*400mm
1940*340*400mm
Mechanical precision
0.025mm
0.025mm
Type of plotter pen
All types diameter 11.4 mm plotter pen
All types diameter 11.4 mm plotter pen
Remark:
1. All machie with professional software
2. WIFI function is optional
3. Consumable parts are not in the maintenance list. (Blade, blade holder, cutting stripe, pinch roller)
>>>Contact us!Click!
Application
Application
label cutting, T-shirt pattern heat transfer, wall / car sticker cutting / traffic sign
Spare Part
Standard accessory box:
Three blades, one blade holder, one pen holder, USB cable, Serial port cable, power cable, one year warranty card.
