980mm/38" cutter plotter with laser and blade for vinyl sticker and non-metal 1420mm(L)*900mm(W)*1126mm(H) soft material

1 set
MOQ
980mm/38" cutter plotter with laser and blade for vinyl sticker and non-metal 1420mm(L)*900mm(W)*1126mm(H) soft material
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Model Number: AP-980L
Voltage: 50w
Paper Feed Width: 980mm
Cutter Pressure: 500G
Cutting Width: 790mm
Cutting Speed: Min.10mm/S ~ Max. 800mm/S
Driver: STEPPER MOTOR
Repeat Cutting: 0.0127MM
Size: 1420mm(L) *900mm(W) *1126mm(H)
Driving motor: Stepping motor
Knife: ROLAND TYPE STANDARD BLADE
Power supply: AC220V/110V ±5%, 50Hz-60Hz
Laser tube power: 50W
Interface: Serial Port/USB
Warranty: 1 Year
Cutting Letter: 2mm Small Letter
Max cutting width: 790MM
Cutting thickness: 1MM
Support software: AI. Artcut.FLEXI SIGNMASTER
Βασικές πληροφορίες
Model Number: AP-980L
Πληρωμής & Αποστολής Όροι
Packaging Details: 1SET/PLYWOOD CASE
Περιγραφή προϊόντων
Product Description


The luxurious type of laser automatic all-in-one engraving machine.
1.It has two cutting methods: laser cutting and graver cutting.
2.This equipment is a four-in-one comprehensive laser engraving machine for advertising applications, irregular contour cutting, laser cutting of pierced non-metallic soft material(within 1mm) , graver cutting and brush drawing .
3.At the same time, it is equipped with the original word stock of Lianjin , which completely solves the defects of many single cutting plotter with in-comprehensive functions and weak pertinence.
4.The device has many advantages such as small space, low cost, low power consumption, simple operation and comprehensive functions.
5.The application: Advertising production, high-intensity reflective film cutting, mechanical equipment printing, outdoor wall advertising, license plate door logo, shipping mark, outdoor logo, clothing lettering, wall advertising, screen printing version, arch model, etc.

Product Name
Laser Cutting and Graver Cutting Full-Automatic Edge Patrol Machine
Working environment
5-40℃, 5-90% R.H. (without condensate) Keep away from the environment with dust or high electromagnetic interference
Laser current range
0-20mA
Machine net weight
46.50KG
Weight of wooden case and accessories
71.00KG
Applicable material
Soft and thin nonmetal material, such as paperboard, cutting vinyl
Remarks
When the power is 110V,the weight is 2kg increased
Resolution
0.0254mm/step

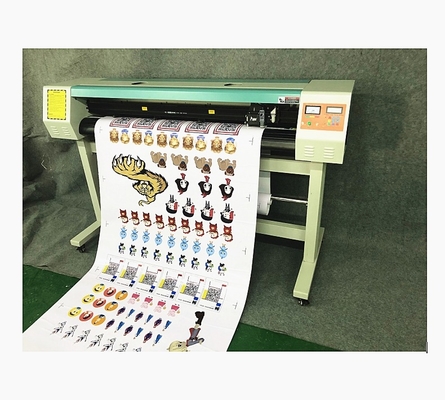

Products Show
Application
Packing & Delivery

1 set / plywood case,the size of case:1550mm*490mm*450mm

FAQ

Q: Are you trading company or manufacturer ?
A: We are trading company with our own factory.

Q: How long is your delivery time?
A: Generally it is 4-7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: How about the shipping mode?
A: If you buy machines less than 3 sets, we recommend you the International Express.If more than 3 sets, by air or by sea is better.

Q: How about the freight?
A: You can resort to your own carrier ,if you have not, we will try our best to lower the freight for you

Q: How to order?
A: You can place an order after the website guidance, if you don't know , just contact us.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for charge and need to pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact us.
