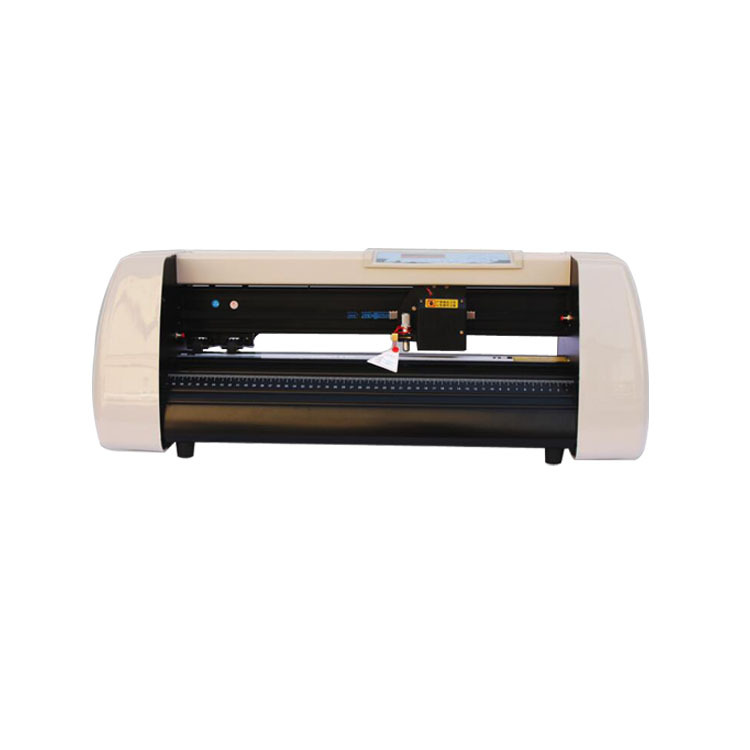

Name: 400mm 38*22*24cm Auto Cutting Vinyl Cutter Plotter
Brand: 400mm 38*22*24cm Auto Cutting Vinyl Cutter Plotter
SKU: WH500, WH500
Price: 320.00 USD
Availability: InStock
Rating: 5 (185 reviews)

400mm 38*22*24cm Auto Cutting Vinyl Cutter Plotter

1 Set

MOQ

$320.00(1 - 49 Sets) $315.00(50 - 199 Sets) $310.00(>=200 Sets)

τιμή

Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα

Χαρακτηριστικά

Προδιαγραφές

Model Number: WH500

Voltage: AC220 50HZ

Cache Capacity: 128MB

Paper Feed Width: 400 mm, 400mm

Cutter Pressure: 0-500g

Cutting Width: 300mm, 300mm

Cutting Speed: 0-800mm/s, 0-800mm/s

Driver: Stepper Motor, Mecro-stepper driver, Stepper Motor, Mecro-stepper driver

Cutting Length: Unlimited Length

Repeat Cutting: 1-500 Times

Size: 38*22*24cm

Product name: 400mm automatic contour vinyl cutter plotter

Model: WH500

Huge pressure: 10-500g( digital adjustment)

Software: AidCut

Work precision: 0.05mm

Repeat precision: <Â±0.1mm

Βασικές πληροφορίες

Model Number: WH500, WH500

Πληρωμής & Αποστολής Όροι

Packaging Details: Carton box with foam 400mm automatic contour vinyl cutter plotter

Περιγραφή προϊόντων

400mm automatic contour vinyl cutter plotter

Product Description

Wide Application Industry

Advertising Logo cutting, vinyl adhesive, reflective film, craft paper, sandblast membrane, PET, PP, PVC, PC, wall paper, etc.

Field:packaging proofing, clothing plate, making car beauty industry, Make Signs for shop windows, cars and vans. cutting labels, heat pressing logos and slogans onto T-Shirts.

Product Parameter

Technical Parameter of Contour vinyl cutting plotter

Model	WH-500	WH-800		WH-880	WH-980
Paper feeding width	400 mm	700mm		800mm	900mm
Paper cutting width	350 mm	600mm		700mm	800mm
Paper bracket	Without	Yes
Bracket height	No	700mm
Compatible system	Windows XP, Win7m 32bit and 64bit
Control panel	At top, LCD display panel, light touch key board
Driver system	Main guide axis with double motor , stepper motor, micro step driver
Cutting speed	0-800mm/s
Curve Max. speed	600mm/s
Cutting length	Unlimited
Cutting force	0-500G (digital adjustment)
Mechanical precision	0.05mm
Repeat precision	<±0.1mm
Power consumption	120w
Type of plotter pen	All types diameter 11.5mm plotter pen
Plotter instruction	Compatible DM/PL,HP/GL
Interface	USB/ Serial port (U disk is optional)
Power supply	AC220v/110v,50-60HZ
Operating environment	Temperature:5-35degree,Relative Humidity:30%-70%
Machine body size	60x22x14cm	68x22x14cm	90x22x14cm	108x22x14cm	110x22x14cm
Package size	70x32x39cm	78x32x39cm	99x32x39cm	113x32x39cm	119x32x39cm
Gross weight	10kg	11kg	17kg	18kg	20kg

Product Images

Plotter in Factory

Sample Display

Sticker

Clothing t-shirt case

Traffic Sign

Warranty Term

1.One year free warranty, main parts are free charge when damaged during the guarantee period.
2.Free training course at our factory with professional engineers.
3.We provide the consumable parts at agent price when you need replacement
4.24 hours online service each day, free online technical support.
