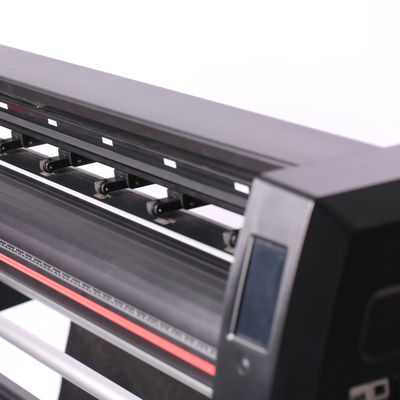

CCD camera cutter cutting LIYU GF 48inches 1200mm touch screen cutting plotter servo vinyl cutter machine

1 set
MOQ
CCD camera cutter cutting LIYU GF 48inches 1200mm touch screen cutting plotter servo vinyl cutter machine
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Model Number: GF-1261
Voltage: AC220V/110V
Cache Capacity: 1GB
Paper Feed Width: 1420mm
Cutter Pressure: 1~1000g
Cutting Width: 1260mm
Cutting Speed: 100-1000mm/s
Driver: Servo Motor
Cutting Length: Limitless
Repeat Cutting: Support
Size: 173*33*40cm
Software: Artcut/signmaster/CorelDRAW
Interface: Wifi/USB2.0/U Disk
Contour cutting function: CCD Camera contour cutting
Guide video: YES
Color: Black
Blade: 30/45/60 Degree
Warranty: 14 Months
Support sample: YES
Multi language: YES
Control panel: Touch Screen
Βασικές πληροφορίες
Model Number: GF-1261
Πληρωμής & Αποστολής Όροι
Packaging Details: Double layers carton with export standard
Supply Ability: 6000 Set/Sets per Month
Περιγραφή προϊόντων
Product Description
Specification
Model
GC801
GC1261
GF1261
Max.Contour Cutting Width
680mm/2.89ft
1230mm/4.66ft
1230mm/4.66ft
Max.Cutting Width
780mm/2.56ft
1260mm/4.13ft
1260mm/4.13ft
Max.Media Width
880mm/2.23ft
1420mm/4.04ft
1420mm/4.04ft
Speed
100-900mm/s
100-1000mm/s
Cutting Force
1-500g
1-1000g
Touch Screen
YES
Memory
1Gb
Cutting Precision
0.025mm/step
Repeat Precision
0.125mm
0.1mm
Power
AC220V(110V)±15% ,<100W
Language Format
HP-GL,DM-PL
Interface
USB2.0 & U-Disk&WIFI
Motor
Stepper
Servo
Pinch Roller
4sets
5sets
9sets
Highlight Features
1）High-definition camera automatic contour cutting, accurate identify the marks of different colors and materials.
2）Multi-point alignment system, segmented contour cutting, automatic deviation correction.
3）4.3 inch touch screen,high resolution,high definition.
4）High precision steel wheel, accurate transmission to prevent deviation.
5）Metallic carriage, which can work continuously and smoothly for a long time and excellent heat dissipation.
6）1Gb super-large memory, data transmission in seconds,can be long time offline cutting, data can also be timely stored even inthe case of power failure.
7）The system can identify USB drive automatically, fast and convenient.
8）Independent pinch roller design,move easily and smoothly.
9）Stepper driver system, reliable and stable performance.
10）Red cutting groove design and high steel body integrated, Good-looking appearance.
FAQ
1.How about your factory?
Our factory was established in 1995.Two production bases up to 38,000 square meters locates in Hefei City,Anhui Province(very near to Shanghai). With more than 200 employees and 26+ years of experience in the production and
development of cutting plotter field.Welcome to visit our factory at any time!
2.Is it safe for us to pay for our first cooperation?
We can do the trade assurance on Alibaba, which will guarantee your products receiving, we also accept other safe payment way as you want.
3.What are the delivery way and deivery time?
Samples and small orders will be shipped by air and large orders will be shipped by sea. Samples and if the order less than 100 sets,delivery time around 1-5 working days. We have super production capacity, orders within 500 sets can be delivered in 7 working days.
4.Can you offer OEM/ODM service?
We have a professional R&D team of more than 50 people to better support OEM&ODM orders.
5. What is your warranty Policy for Cutting Plotter?
The warranty period is 14 months.If there is any faulty in warranty period,free spare parts and train will be offered.
6. Can you provide the demo machine to me?
Yes, we can make you a sample for your approval, but there is a sample charge, which will be returned to you in your next order.
