Αρχική Σελίδα /Προϊόντα/τέμνουσα μηχανή σχεδιαστών/LIYU DF series24 inch 600mm die cut cut servo motor cutter plotter professional vinyl cutter plotter 1GB

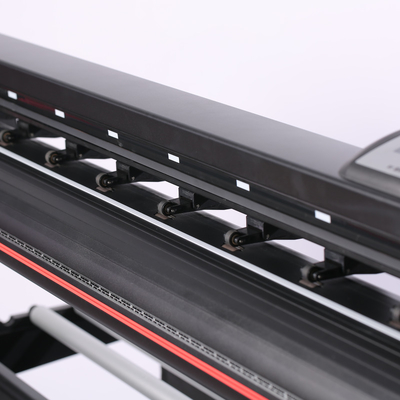

LIYU DF series24 inch 600mm die cut cut servo motor cutter plotter professional vinyl cutter plotter 1GB

1 set
MOQ
LIYU DF series24 inch 600mm die cut cut servo motor cutter plotter professional vinyl cutter plotter 1GB
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Model Number: DF631-AF
Voltage: AC220V/110V,50Hz~60Hz
Cache Capacity: 1GB
Paper Feed Width: 710mm
Cutter Pressure: 10~500g
Cutting Width: 600mm
Cutting Speed: 1000mm/s
Driver: CorelDraw, Signmaster and so on
Cutting Length: more than 10m
Repeat Cutting: 0.127mm
U-dick: YES
motor: servo
Βασικές πληροφορίες
Model Number: DF631-AF
Πληρωμής & Αποστολής Όροι
Packaging Details: Reliable and export standard cartoon package
Supply Ability: 2000 Set/Sets per Month
Περιγραφή προϊόντων
Product Description
Specification
Model
DF631-AF
DF801-AF
DF1261-AF
Cutting Size
600mm/1.97ft
780mm/2.56ft
1260mm/4.13ft
Media Size
710mm/2.33ft
880mm/2.89ft
1340mm/4.40ft
Max.Cutting Speed
1000mm/s
Cutting Pressure
1-500g Digital adjustable
LCD Display&Stand
Yes
yes
Buffer capacity
1GB
Resolution
0.025mm/step
Offset
0-1mm/m
Origin Adjustable
Yes
Repeatability
0.02mm
Power
AC220V(110V)±15%,<100W
Language Format
HP-GL,DM-PL
Interface
USB2.0&Seria&U-Disk
Drive
servo Motor
Princh Roller
3pcs
5pcs
Highlight Features
1.Standard with real Contour cut function,full-automatic and easy to achieve contour cut without interference from other light
sources,high resolution.
2.No need to manually install the USB driver, the system automatic identification, fast, convenient and stable;
3.New adopted ARM processor and new servo drive. system more powerful and stability.
4.It can read and cut the contour cutting file directly from U-disk(flash disk).
5.1Gb super-memory achieves a long time Offline cutting, meanwhile, the data storage can be achieved even power failure.
6.New high-speed GD32 remote control system with new servo drive, higher speed, noise-free work.
7.Humanized design, digital cutting force and speed adjustable at any time.
8.High-precision "steel thorn" main roller, higher accuracy.
9.Emergency stop & stop to return at any time to monitor the cutting quality, easy to operate.
10.Bulk copy up to 99, saving time and effort.
Company Profile
Packing & Delivery
FAQ
1.How about your factory?
LiYu, 20 years old brand, trustworthy!LIYU is the first manufacturer of cutting plotter on the Chinese mainland from 1994..We have independently developed China's first cutting plotter.Now ,Our factory has staff more than 200 people, professional workshop more than 20000 square meters, has our own R & D team and R& D center.We welcome third-party factory inspection at any time.

2. What is your warranty Policy?
The warranty usually be one and half year. Main parts are free charge when damaged during the guarantee period.

3.What kind of technical support will you provide?
We will provide details manual and video to you，and also provide free online technical support.You also can choose free training course at our factory with professional engineers.

4. Can you offer OEM/ODM service?
We can offer OEM/ODM service, you also customize GUI/Software/machine/model/label/warranty/card/printing/logo/carton/manual

5. What is the delivery way?
According to your needs. Usually Sea for bulk orders, air transportation and express for sample or small orders.

6.How long of your sample delivery time?
The goods usually can be prepared within 3~5 workdays or sooner after payment.

7.Which software will be supply?
For the model with contour cut function, SINGMASTER software is standard configuration.We also provide plug-ins for the CorelDRAW.

8. Can we do your agent?
In blank area, For companies with sincerity and strength, we are willing to give them the corresponding market and absolutely welcome to do our agent. We can go into details.
