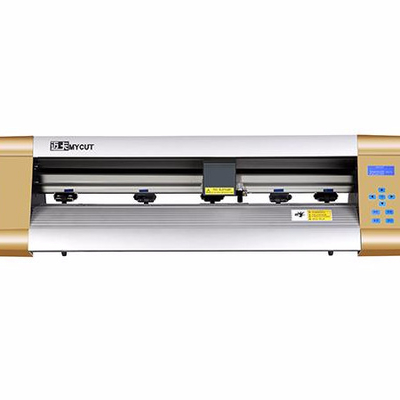

Name: Camera Cutting CCD Metal+aluminum Sheet Metal+aluminum Alloy High Precision MC330 12 Inch Reducing Mini Graph Cutting Plotter Price
Brand: Camera Cutting CCD Metal+aluminum Sheet Metal+aluminum Alloy High Precision MC330 12 Inch Reducing Mini Graph Cutting Plotter Price
SKU: MC330, MC330
Price: 390.00 USD
Availability: InStock
Rating: 4.9 (187 reviews)

Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα

Χαρακτηριστικά

Προδιαγραφές

Model Number: MC330

Voltage: 110-220V

Cache Capacity: 256MB

Paper Feed Width: 29''/730mm

Cutter Pressure: 500-1000

Cutting Width: 17''/430mm

Cutting Speed: 800mm/s max

Driver: Micro-step Motor

Cutting Length: as requested

Repeat Cutting: yes

Size: 700*320*900mm

Product name: graph cutting plotter

Model: MC330

Software: Signmaster, Flexi etc.

Interface: U Disk, USB, Ethernet port

Cutting: CCD camera Contour Cutting

Blade: Imported Hardness Alloy Steelblade

Control panel: LCD Display

Mainboard: AMR 32 CPU

Cutting precision: Â±0.1mm

Material: Sheet Metal+aluminum Alloy

Βασικές πληροφορίες

Model Number: MC330, MC330

Πληρωμής & Αποστολής Όροι

Packaging Details: carton box package

Περιγραφή προϊόντων

Product Description

MC Series Main Features:

1. Integrated carriage head board and imported grit roller make it strong and high precision;

2. With camera sensor for accurate mark detection on contour cutting, can cut any base color or reflective materials, while laser sensor can not make;

3. Except USB and U-disk port, it has Ethernet port which made transmission signal more stable and faster;

4. Real high speed 256MB memory;

5. High precision integrated steel roller: guaranteed 5m without deviation of paper feeding;

6. High accuracy machine structure allows to cut 2mm letters without distortion;

7. High performance 32-bit processor with ARM Cortex-M3;

8. Repeat cutting function makes your work more efficiently;

9. Low noise: whisper quiet motor perfect for home&office use;

10. Aluminum alloy body makes it more durable and elegant;

Model	MC330(17'')	MC630(29'')	MC1200(55'')	MC1500('63')
Main Board	High-performance & intelligent ARM 32 CPU; 256MB memory
Driver	High speed stepping motor, micro-step driver
Max Paper Feed Width	430mm	730mm	1400mm	1600mm
Max Cutting Width	330mm	630mm	1280mm	1500mm
Max Cutting Speed	650mm/s
Cutting Force	0-500g/0-1000g (optional configuration)
Mechanical Precision	0.05mm
Repeatable Precision	< +-0.1mm
Plotter Instruction	DM-PL/HP-GL Automatic Identification
Interfaces	USB / Serial port / U-Disc port
Power Supply	AC110V /220V±10%, 50Hz/60Hz
Software	Contour cutting function; Compatible with Flexi10, Artcut, Signcut
Noise at Work	≤50 DB
External Dimension	700320390mm	1000320390mm	1670320390mm	1900320390mm
Shipping Weight	14kgs	30kgs(stand included)	42kgs(stand included)	50kgs(stand included)

Strong Integrated Carriage

wider range of applications

Integrated Grit Roller

High precision

Big LCD Display

easy-touch silicone keypad with highlight

Strong Pinch Roller

attractive and durable

Three Interfaces

U Disc Port(MH,MG,MS Series only),work without Computer

Standard Blade

Each machine with 1 blade holder,3 blades

Standard Accessories

1) User Manual(CD) 2) 1 RS232 serial cable 3) 1 Power cable and 1 USB cable
4) 3 Cutting Blade 5) 1 Blade Holder 6) 1 drawing pen 7) warranty card

Optional Choices

1)floor stand
2)laser point
3)automatic contour function
4)Signmaster (we supply free coreldraw plug-in)
5)Basket
6)high cutting force
7)U Disc interface(work without computer)
8) wifi wireless transfer
Note:we will extra charge for optional configuration,please contact us for details.

Packaging & Shipping

Standard Packing

With great quality Foam and Carton Packing

Make sure the machine won't be damaged during shipping

Delivery Info

within 7 days for order less than 100 units.

Within 15 days for order more than 100 units.

Our Services

1.One year free warranty, main parts are free charge when damaged during the guarantee period.
2.Free training course at our factory with professional engineers.
3.We provide the consumable parts at agent price when you need replacement
4.24 hours online service each day, free online technical support.
5. High quality and reasonable price
