OPP rotogravure/gravure printing machine price /gravure roto/high speed printer machine

1 Set
MOQ
OPP rotogravure/gravure printing machine price /gravure roto/high speed printer machine
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Type: Rotogravure Printing Machine
Condition: New
Model Number: ASY-G
Usage: OPP, BOPP, CPP, PET, PVC, PE, Nylon, Paper, Aluminum foil etc printer
Automatic Grade: Automatic
Color & Page: Multicolor
Voltage: 380v / Ect (as Customer's Requirements)
Gross Power: About 145KW
Dimensions(L*W*H): 14000(L)*3400(W)*2800(H) mm
Weight: 18000KGS
Warranty: 1 Year
After-sales Service Provided: Engineers available to service machinery overseas
Πιστοποίηση: CE/ISO9001
Product name: ASY-G-1000 Rotogravure Printing Machine
Print Material: OPP, BOPP, CPP, PET, PVC, PE, Nylon, Paper, Aluminum foil etc
Printing color number: 8 colors (possible to add or reduce printing color class)
Max width of printing material: 1000 mm
Max width of printing cylinder: 1050 mm
Max printing speed: 120 m/min
Registration colored precision: ±0.1mm
Max Unwinder Diameter: 600mm
Max Rewinder Diameter: 600mm
Diameter of air shaft: 6 inch 74mm
Βασικές πληροφορίες
Πιστοποίηση: CE/ISO9001
Model Number: ASY-G
Πληρωμής & Αποστολής Όροι
Packaging Details: Sea worthy Packing
Supply Ability: 100 Set/Sets per Year
Περιγραφή προϊόντων

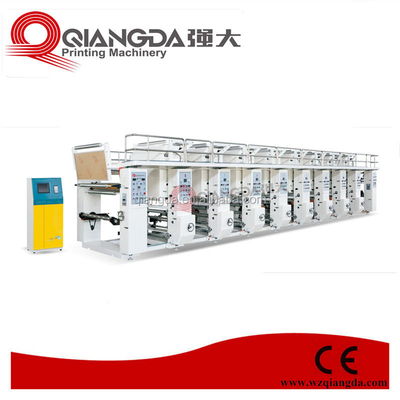

ASY-G Model Series of Computer Middling Rail Gravure Machine

PRODUCT DESCRIPTION

Machines in this series are applicable for continuous multi color printing on rolling materials in good printing performance such as cellophane,BOPP,PET,PVC,PE,aluminum foil,and paper,broadly applied for all types of super-quality printed matters.

MAIN TECHNICAL PARAMETERS

TECHNICAL PARAMETERS

Printing color number

8 colors (possible to add or reduce printing color class)

General printing base material

OPP: 15-60um,BOPP: 15-60um,CPP: 20-60um,

PVC:35-60um, Nylon fiilm: 15-50um, PE: 30-100um

PET: 12-60um

Max width of printing material

1000 mm

Max width of printing cylinder

1050 mm

Max mechanical speed

140 m/min

Max printing speed

120 m/min

Registration colored precision

±0.1mm

Printing length

Φ110mm-Φ350mm

Max Unwinder Diameter

Φ600mm

Max Rewinder Diameter

Φ600mm

Diameter of air shaft

Φ74mm

Tension range

3~500kgf

Tension control precision

±0.5kgf

Pneumatic source

0.6Mpa

Impression roller pressure

200kgf

Doctor blade transverse move range

±5mm

Main drive motor

15 kw

Heating power

15 kw x 8 (Each color unit 15 kw)

Total power

About 145 kw (Actually working power 90 kw)

Weight

About 18000 kg

Overall dimensions

14000(L)×3400(W)×2800(H) mm

Machine color

Red-white (other colors as required)

MACHINE DETAILS &WORKSHOP

ABOUT US ---- WENZHOU QIANGDA PRINTING MACHINERY CO.,LTD

Company Brief Introduction

Wenzhou Qiangda Printing Machinery Co.,Ltd was founded in early stage of1980s,having Ruian Qiangda Printing Machinery Co., Ltd .as its predecessor.Presently,it covers an area of 46000m²,has 300 employees,and up to 70 sets of production facilities such as imported digital control machining centers.Specialized in fabricating soft package facilities such as printing presses,laminating machines,splitting machines ,yew paper printers,yew paper bronzing machines.it is among the most powerful and famous enterprise in the same circle in China,and has its unique technique and experience :based on the market demands ,this company is the first to successfully develop a new performance and operation target of which have overtaken the level of domestic similar products.:its products is sold all though China ,and imported to tens of countries and regions such as South-East Asia,Middle -East,Russia ,South American ,and Africa,receiving good graces from users everywhere.

OUR TEAM & 2018 EXHIBITIONS

2018----EXHIBITION
1.We will attend SINO LABEL 2018 exhibition in Guangzhou on 10th.March.2018
Hall 8.1 Booth No: 320
2.We will attend Chinaplas 2018 exhibition in Shanghai on 24th.April.2018 ,

Hall 1 Booth No: S25


ENTERPRISE HONORS

PACKING & DELIERY

CONTACT US

FAQ

1.Are you a manufacturer?

Yes, we have been in making printing machine over 37 years.

2.What about the payment term ?

Mostly 30%T/T in advanced, the rest need be paid by TT before shipping.if nessary,can do L/C.

3.machine adjustment and installation

We can send technicians go to customers' country for machine installation and adjustment.


4. Quantity and quality guarantee

  • Quantity/Quality Discrepancy to destination port during transportation:

In case of quality/quantity discrepancy to destination port in transportation, customer should file claim within 30 days after the arrival of the goods at port of destination.

  • Guarantee period and after-sales services:

12 months since installation finish and machine normal working. During this guarantee period, We will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide spare parts at cost price.

  • Long-term service:

We will charge the buyer the cost price of spare parts beyond guarantee time and provide long-term technical guide.

5. Validity: 60 days since the quote date

Thanks for your attention! Sincerely hope to work with you in near future!
