Type: Rotogravure Printing Machine

Applicable Industries: Other

Showroom Location: None

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Ordinary Product

Warranty of core components: 1 Year

Core Components: Bearing, Gearbox, Motor

Condition: New

Usage: Paper Printer, Label Printer

Automatic Grade: Semi-automatic

Color & Page: Multicolor

Voltage: 380V(220V, 415V optional)

Weight: 9500 KG

Warranty: 1 Year

Key Selling Points: Automatic

After-sales Service Provided: Engineers available to service machinery overseas

Plate Type: Gravure

Βασικές πληροφορίες

Πληρωμής & Αποστολής Όροι

Packaging Details: Wooden case or soft packing depends on your requests and delivery method

Supply Ability: 110 Set/Sets per Year

Περιγραφή προϊόντων

Ordinary rotogravure printing machine

Profile:
This machine is sultable for all assortment plastic film, paper etc., rolling material to print successively.

With cylinders to ressure pringing. over-long tunnel to dry. Imported frequency governor, it can be adjusted with 360°freely. tension magnetic powder control, speed display and automatic counter etc.

Model	YA-600	YA-800	YA-1000
Rolled material width	620mm	820mm	1020mm
Diameter of core	76mm	76mm	76mm
Diameter of material	600mm	600mm	600mm
Diameter of roll	80-270mm	80-270mm	80-270mm
Printing width	600mm	800mm	1000mm
Printing volors	1 to 12 colors	1 to 12 colors	1 to 12 colors
Precidion of overprint	+-0.2mm	+-0.2mm	+-0.2mm
Printing speed	10-60m/min	10-60m/min	10-60m/min
Overall dimension	11000x1350x2100mm	11000x1550x2100mm	11000x1750x2100mm
Total power	22kw	28kw	43kw
Weight	9500kg	11000kg	11500kg

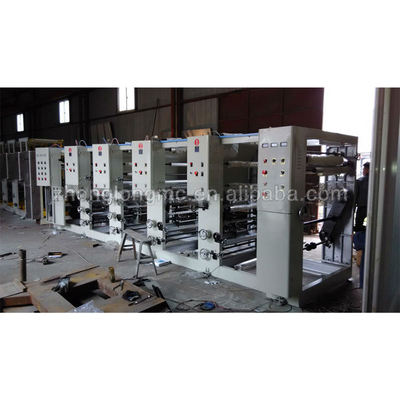

The other economical 1-12 color gravure printing machine
